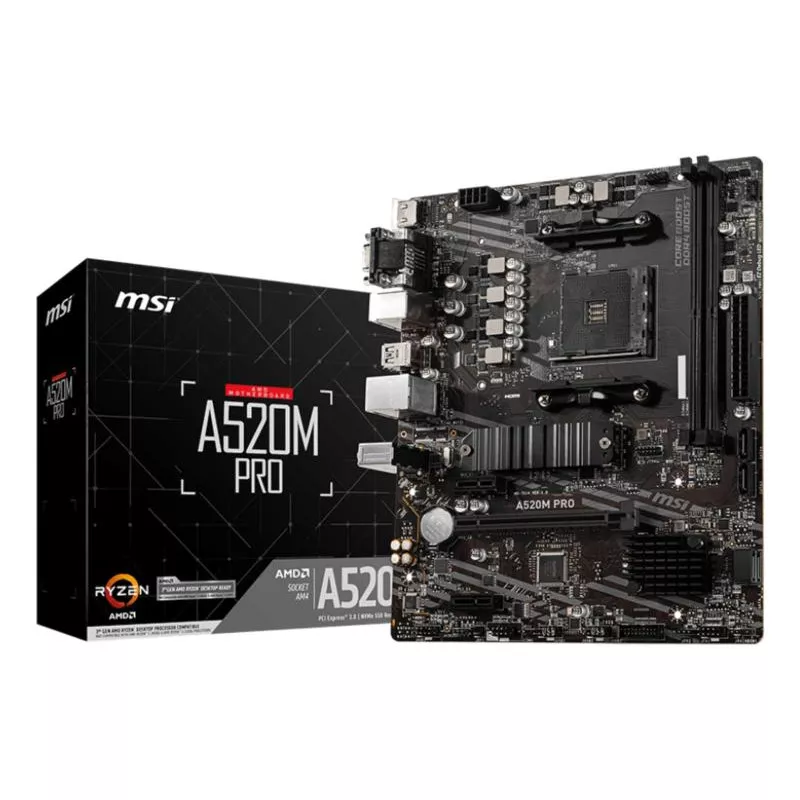

MSI A520M PRO carte mère AMD A520 Emplacement AM4 micro ATX

Name: MSI A520M PRO carte mère AMD A520 Emplacement AM4 micro ATX
Brand: MSI
SKU: A520M PRO
Price: 72.62 EUR
Availability: InStock

72,62 €

Dont 0,05 € d'éco-participation

TTC

Fiche Produit MSI A520M PRO Processeur Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors Chipset AMD A520 Chipset Mémoire 2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Stockage AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) M2_1 slot (from AMD Processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage…

Description
Détails du produit

Fiche Produit	MSI A520M PRO
Processeur	Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset	AMD A520 Chipset
Mémoire	2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Stockage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) M2_1 slot (from AMD Processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Réseau	1x Realtek® RTL8111H LAN controller
Audio	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
Ports USB	AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Interface E/S Arrière	VGA Keyboard / Mouse LAN port HDMI DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Audio Connectors
Interface E/S Interne	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper
Système d'Exploitation	Support for Windows® 10 64-bit
Format	M-ATX Form Factor ( 24.4 cm x 21 cm )

Informations techniques

Fiche Produit	MSI A520M PRO
Processeur	Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset	AMD A520 Chipset
Mémoire	2x DDR4 memory slots, support up to 64GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE1DPC 1R max speed 4600 MHz1DPC 2R max speed 3866 MHzDual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)Supports un-buffered memory
Stockage	AMD A520 Chipset4x SATA 6Gb/s ports1x M.2 slot (Key M) (from AMD Processor)M2_1 slot (from AMD Processor)Supports PCIe 3.0 x4Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devices
Réseau	1x Realtek® RTL8111H LAN controller
Audio	Realtek® ALC892 Codec7.1-Channel High Definition Audio
Ports USB	AMD A520 Chipset2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Interface E/S Arrière	VGAKeyboard / MouseLAN portHDMIDisplayPortUSB 2.0 PortsUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 1 5Gbps Type-AAudio Connectors
Interface E/S Interne	1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors1x Serial port connector1x M.2 slot (M-Key)1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x 4-pin RGB LED connector1x 3-pin RAINBOW LED connector1x TPM module connector1x Clear CMOS jumper
Système d'Exploitation	Support for Windows® 10 64-bit
Format	M-ATX Form Factor ( 24.4 cm x 21 cm )
